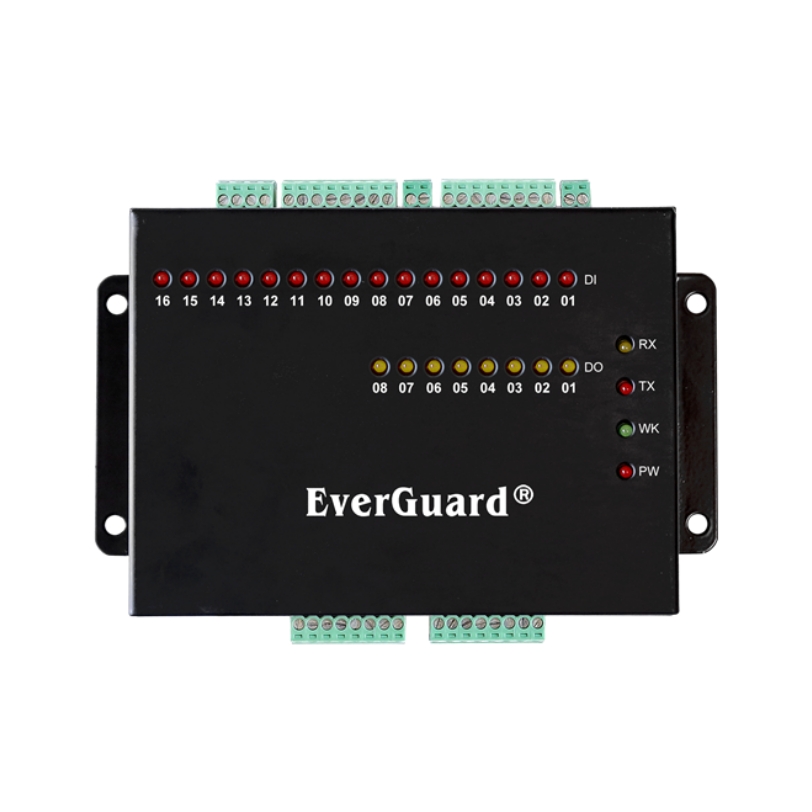

Network Multiplex I/O Controller (16DI / 8DO)

Network Multiplex I/O Controller (16DI / 8DO)

SKU: BA-1608-IP Category: Tags: ,

Description

【Specification】

DI :16
DO : 8
Dimension : 130(L) x 96(W) x 32(H) mm
Input voltage : DC9V ~ DC30V
Current consumption : 500mA
Operation temperature : -5~55℃
Transmission interface :
RS-485   Transmission rate : 9600-19200-N-8-1
Communication distance  : 1200ㄩ
-Standard 10/100 Ethernet RJ45 terminal.
Protective device  : With optical coupling isolation



【Features】

Support to connect the on-site network controller and the access control power-saving control host.
For detecting events, the on-site network controller can be linked for emergency door opening,linked fire protection, security devices, and power saving control.
Built-in microcontroller, with WDT anti-down design, good stability.
Contains EEPROM memory, no data loss during power outages.
With reset input and alarm output. .
DI is optical coupling isolation, DO is relay output.
Each DI/DO channel has an LED indicator.
When the alarm is triggered, the DO outputs the alarm action, which can be connected to the flashing alarm horn or shift output.
With power indicator, work indicator, status indicator.
It can be connected to the emergency call control host.
It can be connected to the photo disc to give emergency call instructions.
With RS485 and Ethernet.
Support ModBUS communication protocol.
Provide remote upgrade through network.
Using 32-bit high-performance SOC single-chip embedded processor.
